Hover your mouse over an Underlined Description to see the photo!
100177 Fuel Level Gauge |
FUEL LEVEL - ELECTRICAL
| DESCRIPTION |
SENDER MATCH |
PART # - BLACK |
PART# - POLISHED |
| 240-33 ohms |
100438 |
100176 |
100177 |
| 240-33 ohms - 24VDC |
100438 |
101584 |
101585 |
| 0-90 ohms |
100436 |
100677 |
100678 |
| 78-10 ohms |
100437 |
102478 |
102479 |
| 10-180 ohms |
100083 |
100726 |
100727 |
|
|
FUEL LEVEL - SMART INSTRUMENTS
| DESCRIPTION |
SENDER MATCH |
PART # - BLACK |
PART# - POLISHED |
| Trip pt. 1/8 tank |
100438 |
102750 |
103110 |
|
100168 Fuel Pressure Gauge |
FUEL PRESSURE - MECHANICAL
(Caution: Do not mount Mechanical Fuel Pressure Gauges inside a car or enclosed cab when fuel is gasoline. Do not use pressure tube kit, use standard high pressure fuel line)
| DESCRIPTION |
PART NO. - BLACK |
PART NO. - POLISHED |
| 0-15 psi |
100168 |
100169 |
| 0-30 psi |
100170 |
100171 |
| 0-80 psi |
101190 |
101191 |
|

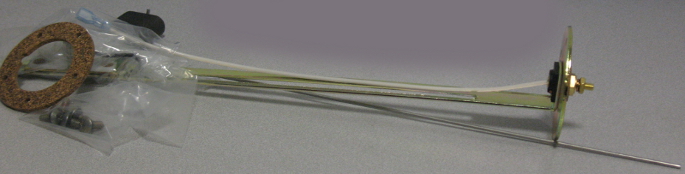

100438 Fuel Sender |
FLOAT-ARM SENDERS
(Note: Float Arm Kits include sender and gasket. Gasket P/N is 02343-02 and Hardware P/N is 02342-00. Heavy Duty sender for tank diameter of 1.65"
± .02" or greater. Use slimeline sender for smaller diameters.)
| TANK DEPTH |
POSITION |
MATCH |
GND |
SLIMLINE PART NO. |
HEAVY DUTY PART NO. |
| 6-24" |
1 & 3 |
DAT |
COM |
102535 |
104734 |
| 6-24" |
1 & 3 |
DAT |
ISO |
100986 |
104736 |
| 6-24" |
1 & 3 |
VDO |
COM |
100967 |
104738 |
| 6-24" |
1 & 3 |
VDO |
ISO |
100970 |
104740 |
| 6-24" |
2 & 4 |
AC |
COM |
100436 |
104742 |
| 6-24" |
2 & 4 |
DAT |
COM |
100438 |
104735 |
| 6-24" |
2 & 4 |
DAT |
ISO |
100969 |
104737 |
| 6-24" |
2 & 4 |
IN |
COM |
100437 |
104743 |
| 6-24" |
2 & 4 |
VDO |
COM |
100083 |
104739 |
|
| |
VARIABLE CAPACITANCE HEAVY DUTY SENDERS
(Note: Variable Capacitance sender kits include sender and gasket, P/N 02343-04)
| TANK DEPTH |
MATCH |
GND |
SWITCH TRIP POINT |
HEAVY DUTY PART NO. |
| 16.5" |
DAT |
ISO |
- |
106595 |
| 16.5" |
DAT |
ISO |
1/8 Tank |
106598 |
| 18.5" |
DAT |
ISO |
- |
106596 |
| 18.5" |
DAT |
ISO |
1/8 Tank |
106599 |
| 20.5" |
DAT |
ISO |
- |
106597 |
| 20.5" |
DAT |
ISO |
1/8 Tank |
106600 |
| 20" R |
DAT |
ISO |
- |
105696 |
| 20" R |
DAT |
ISO |
1/8 Tank |
106590 |
| 22" R |
DAT |
ISO |
- |
105697 |
| 22" R |
DAT |
ISO |
1/8 Tank |
106591 |
| 23" R |
DAT |
ISO |
- |
105698 |
| 23" R |
DAT |
ISO |
1/8 Tank |
106592 |
| 24" R |
DAT |
ISO |
- |
105699 |
| 24" R |
DAT |
ISO |
1/8 Tank |
106593 |
| 25" R |
DAT |
ISO |
- |
105700 |
| 25" R |
DAT |
ISO |
1/8 Tank |
106594 |
| 26" R |
DAT |
ISO |
- |
105701 |
| 26" R |
DAT |
ISO |
1/8 Tank |
160800 |
|
